- Self operative swing type design
- Flanged ends
- Designed to allow maximum flow of water
- Available in PN10 & PN16
- ISI Marked as per IS:5312
- Bye pass arrangement can be provided
Working & Test pressure :
- Type of Valve – PN 0.6, PN 1.0, PN 1.6
- Hydrostatic Test (Mpa)
- Body – 0.9, 1.5, 2.4
- Shell – 0.6, 1.0, 1.6
- K-514 In PN 10 pressure and with Rubber Seating.
- K-515 In PN 10 pressure and with GM Seating.
- K-516 In PN 16 pressure and with Rubber Seating.
- K-517 In PN 16 pressure and with GM Seating.
Note : The valves can also be made in PN 1.6 & 1.0 on request
| S.No. | Components | Material |
|---|---|---|
| 1 | Body, Cover, Hinge, Door, Door Face Disc | Cast Iron, SG Iron |
| 2 | Hinge Pin | High Tensile Brass, Stainless Steel |
| 3 | Body Face Ring | Leaded Tin Bronze (Gun Metal), S.S. |
| 4 | Door face | Leaded Tin Bronze, Natural Rubber |
| 5 | Boltings | Carbon Steel |
| 6 | Gaskets | Rubber, CAF. |

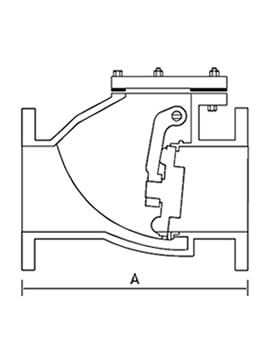

| Size (mm) | A Length over Flanges | Size of Bye Pass Valve | PN Std. Pressure Rating |
|---|---|---|---|
| 50 | 200 | 10 | 1.6 |
| 65 | 240 | 10 | 1.6 |
| 80 | 260 | 10 | 1.6 |
| 100 | 300 | 10 | 1.6 |
| 125 | 350 | 15 | 1.6 |
| 150 | 400 | 15 | 1 |
| 200 | 500 | 25 | 1 |
| 250 | 600 | 25 | 1 |
| 300 | 700 | 40 | 1 |
| 350 | 800 | 40 | 0.6 |
| 400 | 900 | 40 | 0.6 |
| 450 | 1000 | 50 | 0.6 |
