Paper & Pulp Industry, Waste & Effluent Treatment Plants, Water Treatment, Chemical & Sugar Industry, Fire Fighting, Drilling Rigs, Heating & Air Conditioning, Cooling Water Circulation, Compressed Air, Civil Constructions & numerous other.

• N 50 to DN 600, PN 10 & PN 16
• Temperature Range 34°C to 150°C
• No part in contact with fluid except disc and liner
• Self lubricated bushes
• Neck flange according to ISO:5211
• Direct Actuator mountable design
• Design reference IS:13095 & BS:5155
• Neck height to accommodate insulation
• Lugs on body make them suitable for using at the end of line
• Suitable for actuator & gear mountings
• 100% leak tight design
• Available in lever type and clutch type handles
• Each valve is factory tested to 110 percent of specified pressure rating.
• Extended neck allows adequate clearance for flanges and insulation.
• Round, polished disc and hub edge provides 360 degree concentric seating, minimum flow restriction, lower torques and longer seat life.
• Cast-in top mounting plate is an integral part of the body which is standardized to allow direct mounting of all kind of actuators.

Suggested Operation :

• For PN10 & PN16 : Upto 150mm Hand Lever
• Types End connection: Flanged / Lug / Wafer
• Over 150mm : Gear or Actuator

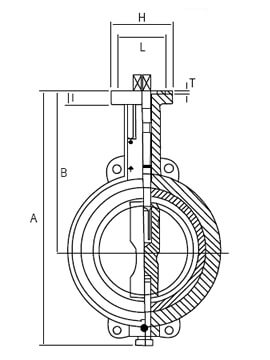

• K-701 (with CF8 disc)
• K- 702 (with CF8M disc)
